Descripción

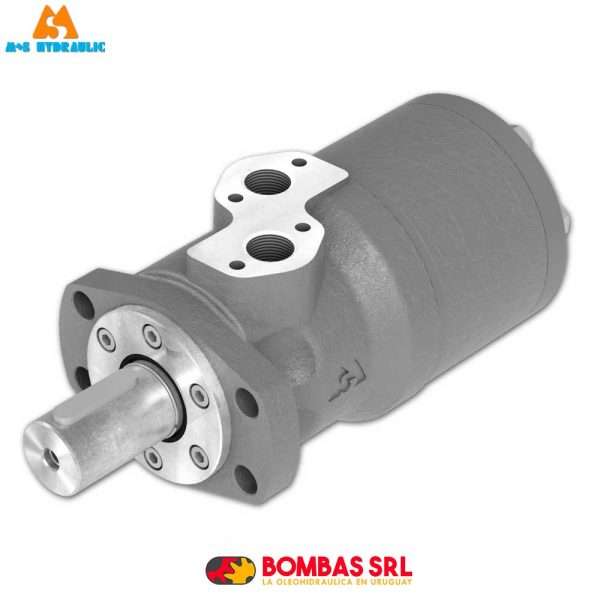

MOTORES M+S DE LA SERIE MLHH, DIFERENTES TIPOS DE MONTAJES DISPONIBLES.
CILINDRADAS DISPONIBLES:
200 cm3/rev
250 cm3/rev
315 cm3/rev
400 cm3/rev
500 cm3/rev
APLICACIONES:
Maquinaria Industrial
Máquinaria Agrícola
Maquinaria de Mineria
Industrias Alimenticias
Industria Textil
Cintas Transportadoras
| Code | Displacement [in3/rev] | Max. speed [RPM] | Max. Torgue [lb-in] | Max. Output [HP] | Max. Pressure Drop [PSI] | Max. Oil Flow [GPM] | |||||
| cont. | int* | cont. | int* | cont. | int* | cont. | int* | cont. | int* | ||
| MLHM 8 | 0.5 | 1950 | 2440 | 106 | 133 | 2.4 | 3.6 | 1500 | 2030 | 4.2 | 5.5 |
| MLHM 12.5 | 0.79 | 1550 | 1940 | 150 | 205 | 3.3 | 4.3 | 1500 | 2030 | 5.5 | 6.6 |
| MLHM 20 | 1.22 | 1000 | 1250 | 230 | 311 | 3.3 | 4.3 | 1500 | 2030 | 5.5 | 6.6 |
| MLHM 32 | 1.93 | 630 | 790 | 375 | 506 | 3.3 | 4.3 | 1500 | 2030 | 5.5 | 6.6 |
| MLHM 40 | 2.44 | 500 | 625 | 375 | 506 | 2.5 | 4 | 1200 | 1600 | 5.5 | 6.6 |
| MLHM 50 | 3.05 | 400 | 500 | 398 | 513 | 2.48 | 2.8 | 1015 | 1300 | 5.5 | 6.6 |
